MiCOM S1 - Moving forwards with Agility
Soon you will discover the next generation in tools for configuration and maintenance of MiCOM-redefining MiCOM S1. MiCOM S1 Agile is the next step enhancement from existing MiCOM S1 Studio, encompassing all of the traditional functionality, to become the complete successor.
The move from S1 Studio to S1 Agile underlines Alstom’s R&D investment in usability: to assemble all tools in a palette for simple entry, with intuitive navigation via fewer mouse-clicks.
MiCOM S1 Agile is the truly universal PC tool for MiCOM for the first time. No-longer are separate tools required for redundant Ethernet configuration, phasor measurement unit commissioning, busbar scheme operational dashboards, programmable curve profiles or automatic disturbance record extraction – all applications are embedded. MiCOM S1 Agile supports all existing MiCOM, K-Series and Modulex, including a utility for automatic conversion of setting files from previous generations of numerical relays like K-series and MiCOM P20 to the latest P40 Agile models.
The choice from here depends on your patience. If you wish to proceed to download the legacy of MiCOM S1 Studio, you can request it with the Contact form link below. To move to the future, with no loss of functionality, no loss of device support, and full compatibility with your installed base and system architecture - please wait a little longer for MiCOM S1 Agile. In each case, we do advise to register with us now - register for MiCOM S1 Studio and you will automatically be notified when the NEW MiCOM S1 Agile is here. The leaflet attached below gives a heads-up.
Key features in the MiCOM S1 family:
- Alstom Grid's integrated engineering tool that provides users with access to all automation IED configuration and record data
- Integrated configuration and monitoring features
- Send and extract setting files
- Event and disturbance record extraction and analysis
- S1 Agile only: Integrated programmable curve tool and RSTP redundant Ethernet configuration for protection relays
- S1 Agile only: Integrated automatic extraction of disturbance records facility
- S1 Agile only: Integrated P740 and P746 remote HMI and topology tools for busbar schemes
Key benefits:
- Powerful, free of charge, PC toolsuite
- Optimum management of the installed base, structured as per the substation topology
- Intuitive and versatile interface with file management facilities
- Logical structure based on substation, voltage level and bay
- Version control and cross-checking facilities for IED settings
- Real-time measurement visualization - S1 Agile extends to all IEDs - including P847 PMU and busbar schemes
- S1 Agile only: Convert K-series and P20 series settings files to MiCOM P40 Agile relay equivalents - the future for distribution and industry protection
- S1 Agile only: Select the latest substation IEDs from the extensive MiCOM Alstom, MiCOM P40 Agile and MiDOS ranges

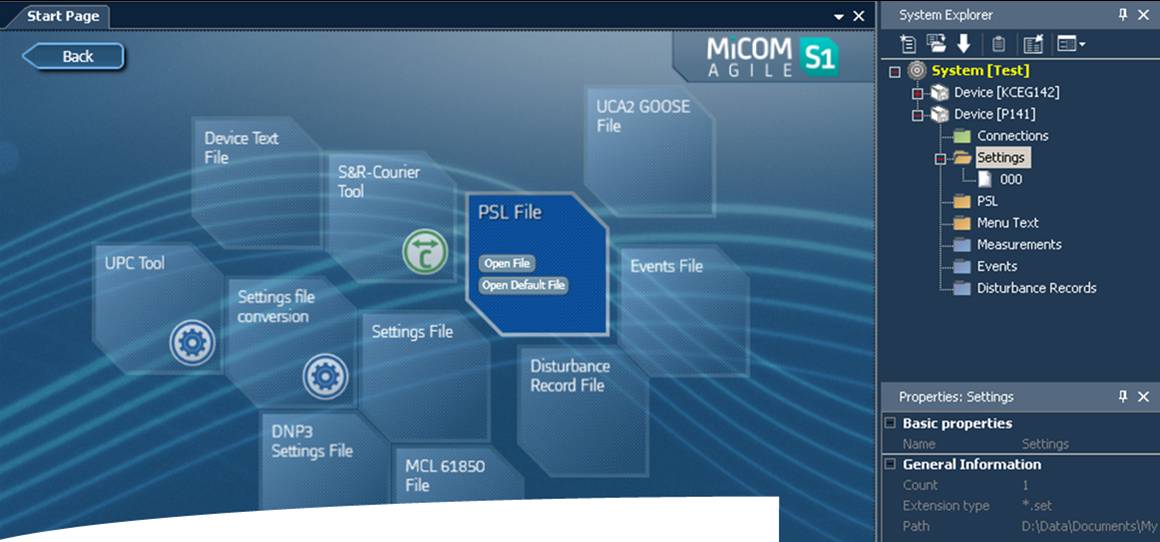

MiCOM S1 Agile offers a fresh new look - functions and components are presented as “tiles” rather than menu items. You can trial such navigation now by installing the MiCOM Alstom Product Selector:
Get the selector, see the look >>>MiCOM Alstom Product Selector
MiCOM S1 software request
To receive the MiCOM S1 Studio, MiCOM S1 Agile, or any other MiCOM PC tools software by download, please use our Contact form.
MiCOM S1 Agile - Graphical, Universal, Intuitive
Uniquely from Alstom Grid
Register now and be the first to know
MiCOM S1 registration
To ensure that you are kept up-to-date with all the latest enhancements, including updates, bug fixes and to be the first to receive MiCOM S1 Agile please register your software using the Contact form.
User programmable curve tool application software
The User Programmable Curve Tool software provides the following features
- Creation of user-defined curves and flexible download/upload of operating and reset curves into/from the MiCOM Px4x range of relays
- User-friendly graphical user interface for easy creation and visualization of curves either by inputting formula or data points
- You can request it by filling out the Contact form
- Alternatively please wait until MiCOM S1 Agile is launched, which has the utility embedded natively
