MTS HYpact 145 Line Bay, 2 CTs (low ratio)

MTS HYpact 145 Line Bay, 2 CTs (low ratio)

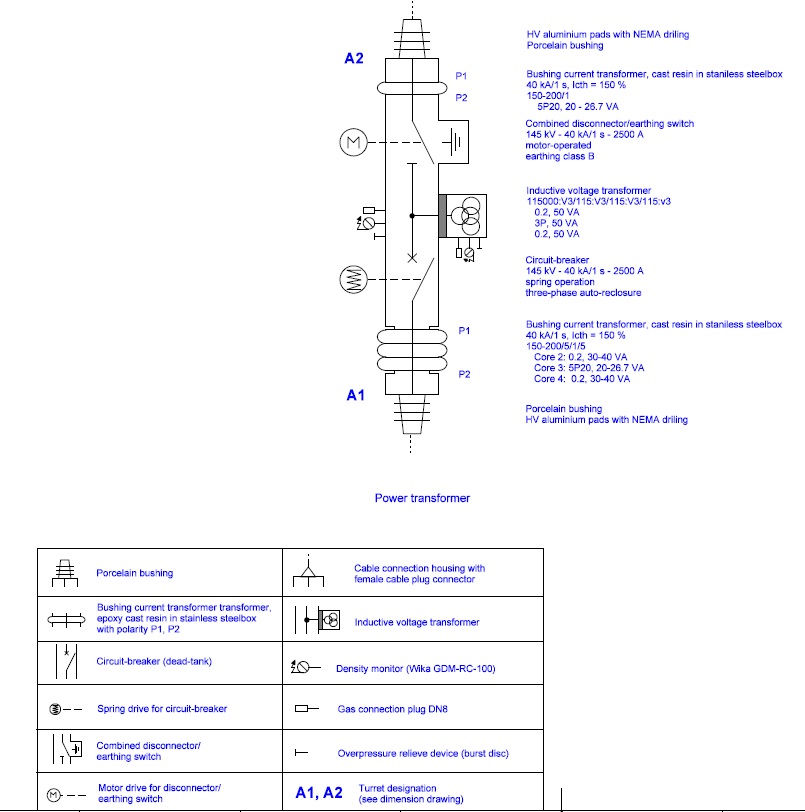

the larger CT will be placed on turrets A1, so that A1 would actually get longer and A2 shorter. Also, no DS/ES at turrets A1.

 We offered an additional earthing switch (direct, class B) on line side. This earthing switch is not required according to the RfQ’s SLD, but as its cost is negligible (in comparison with the total price) we consider it as additional value.

 Alternatively to direct earthing of the line side, we can turn the earthing switch direction towards the circuit breaker and then towards the power transformer. (Integral earthing, practically no cost difference.)

• Rated voltage: from 123 kV up to 170 kV
• Rated normal current: 2 500 A
• Rated short-circuit current: 40 kA
• Encapsulated switchgear in SF₆ gas
• Slip over current transformers
• Different versions available:
• Current transformer on both sides
• Single and three pole operation
• Disconnector/earthing module on both sides
• Single or double busbar
• Cable sealing
